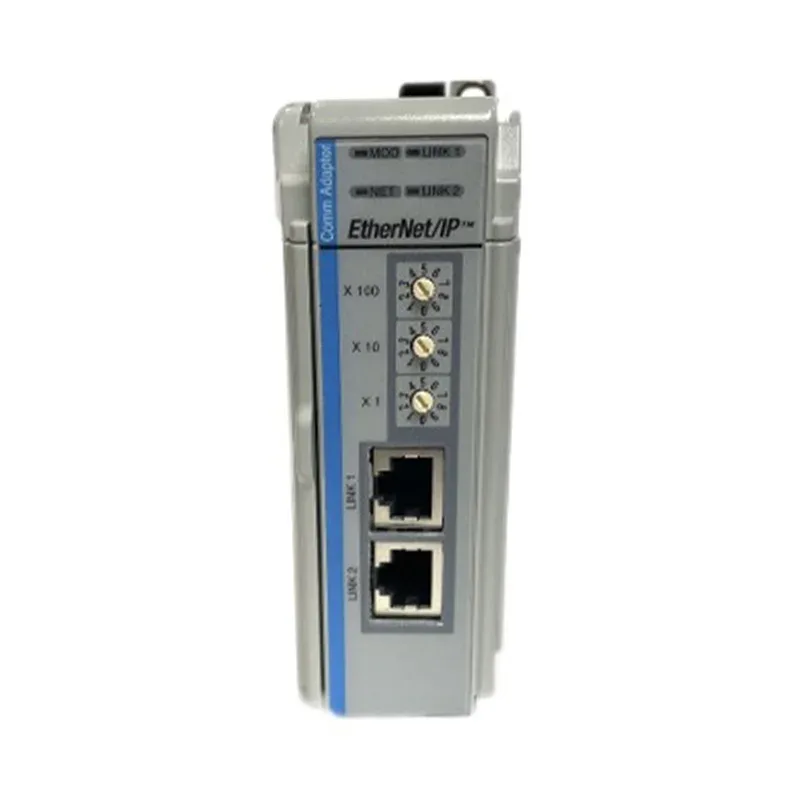

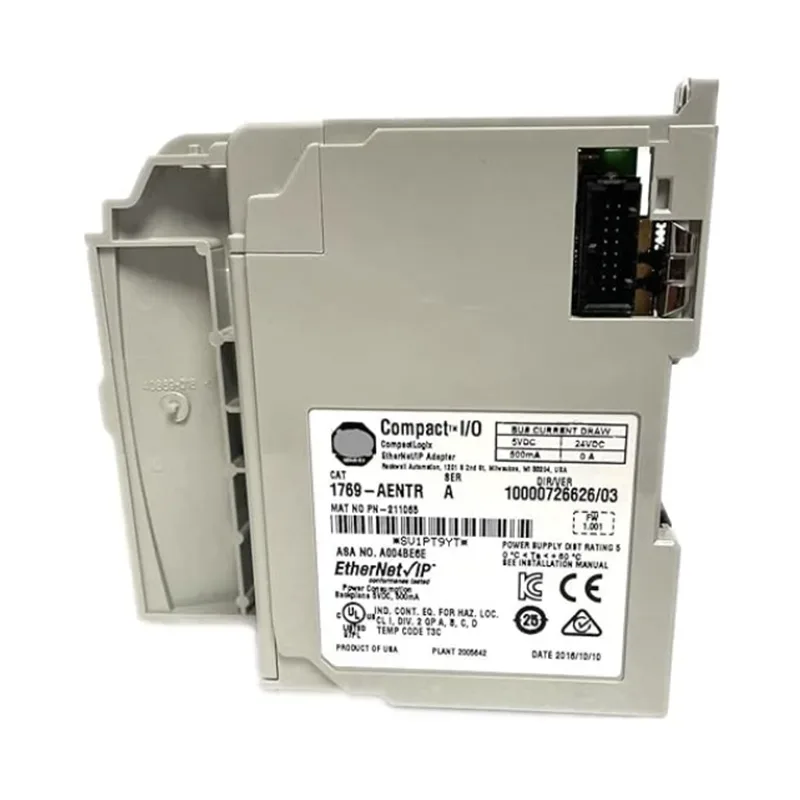

Allen Bradley 1769-AENTR

If you're looking for a high-performance, highly reliable industrial communication module, the Allen Bradley 1769-AENTR is your ideal choice. Xinyuan Technology is committed to providing high-quality products and services to help industrial automation systems operate efficiently. As a Chinese supplier with many years of experience in the industrial automation field, we not only excel in the domestic market but also enjoy a high reputation in the international market, consistently earning the trust of customers worldwide with our high-quality products and services.

Send Inquiry

Product Description

If you would like to purchase the Allen Bradley 1769-AENTR module or have any technical questions, please feel free to contact Xinyuan Technology. This high-performance Ethernet communication adapter supports Ethernet/IP/TCP/IP communication protocols and is designed for industrial Ethernet environments. The module is equipped with dual Ethernet ports and supports both device-level ring (DLR) and linear network topologies, effectively improving network reliability. The module is hot-swappable, the compact housing does not take up space, and installation is also very convenient. The module is also compatible with CompactLogix L3x series controllers, MicroLogix controllers, and a variety of 1769 I/O modules.

Product Parameters

Network Interface	Dual-port Ethernet, 10/100 Mbps, supports EtherNet/IP
Protocol Support	TCP/IP, CIP (Common Industrial Protocol)
I/O Capacity	Supports up to 30 1769 I/O modules
Power Requirements	Typically powered by backplane; refer to documentation for voltage
Operating Temperature	Approx. 0°C to 60°C
Certification & Standards	Complies with CE, UL, CSA, and other international standards
Mounting Method	Standard DIN rail mounting

Why Choose Us?

We're more than just a product supplier; we're your technology partner. Xinyuan Technology is committed to providing customers with complete industrial automation solutions, offering a one-stop service from product selection and technical support to fast delivery and after-sales service. Our team has a deep understanding of the Allen Bradley 1769-AENTR module's features and application scenarios, and can provide you with professional technical advice and solutions. Whether purchasing individually or as part of a project, we can meet your needs. Contact Xinyuan Technology today for the latest price and inventory information!

Installation Process

Allen Bradley 1769-AENTR should be divided into three core steps: hardware installation, IP address setting and software configuration. Fix the module on the DIN rail and determine the module on the far left of the independent I/O frame according to the system configuration. It can also be installed in the first slot on the right side of the CompactLogix 1769-L3x or higher-level controller. After the physical installation is completed, connect the Ethernet cable and power the frame. Then, set the IP address. A fixed network address can be assigned to the module through a BootP/DHCP server, a USB port, or an SD card, etc. And add 1769-AENTR and its subordinate I/O modules to the project, and download the program to establish stable communication between the controller and the distributed I/O. If you have any questions, please feel free to communicate with me at any time, and we have attached explanations.
