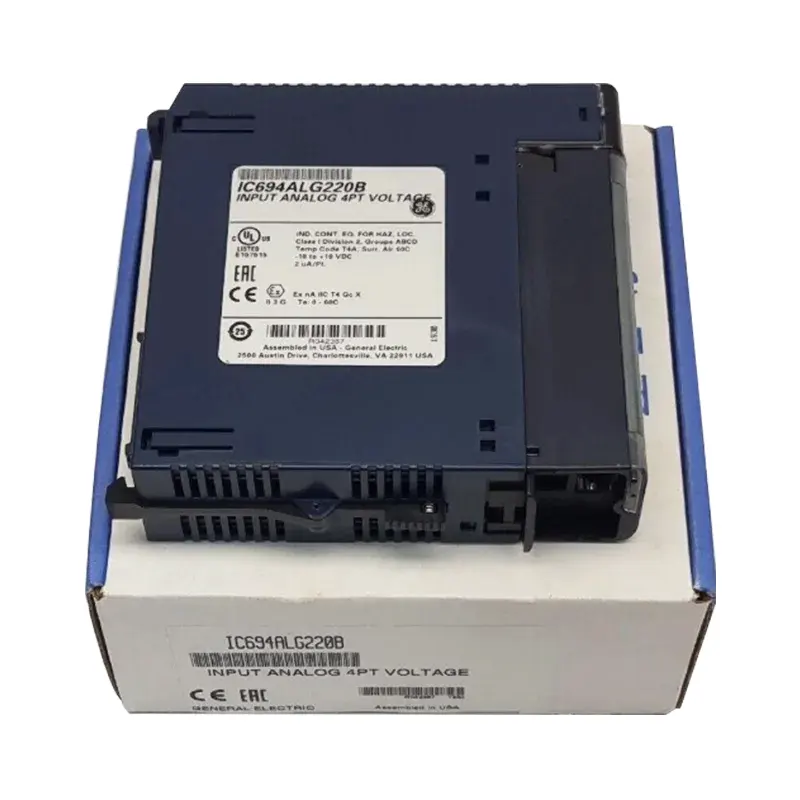

GE IC694ALG220

The GE IC694ALG220 input module of Xinyuan Technology adopts a high-precision intelligent control system, featuring 16-bit resolution and 8 input channels. If your project requires precise measurement of continuously changing physical quantities such as temperature, pressure, flow rate or liquid level, it is definitely an indispensable core component in your system. We not only offer high-quality modules, but also provide you with the confidence and guarantee to achieve precise control.

Send Inquiry

Product Description

Xinyuan Technology Co., Ltd. is a professional supplier of GE IC694ALG220 input modules. It can sense those subtle and continuously changing signals, such as the rise and fall of temperature, the strength of pressure, and the speed of flow. It can make your control system smarter and more accurate. Its resolution reaches 16 bits and it has 8 channels between them, which can adapt to the complex environment of industrial sites.

Structure:

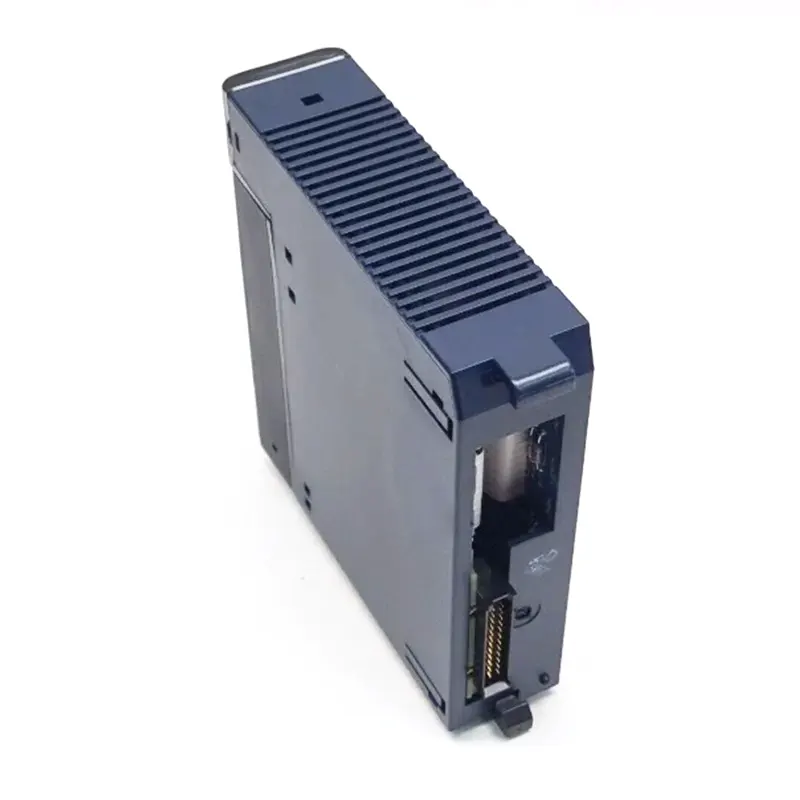

It is a standard RX3i module that can be easily slid into the system backplane and firmly fixed with clips, ensuring a stable and quick installation process. Like other modules in the series, the GE IC694ALG220 adopts detachable terminal blocks. This design is very convenient for maintenance, and the panel design of the module is also very user-friendly. In addition to the status LED lights corresponding to each channel, there are also clear DIP switch areas, accompanied by instruction labels, allowing you to have a clear understanding and avoid mistakes when configuring the range. These LED lights will display the working status of each channel in real time when in operation. Whether it is "disconnected" or "out of range" can be known at a glance, making it very convenient to troubleshoot.

Why Choose Us?

Xinyuan Technology has been deeply involved in this industry for many years, accumulating rich product knowledge and application experience. Our strengths lie in "integration" and "professionalism". Not only do we have a large inventory of goods in stock and can deliver them quickly, but more importantly, our technical team can truly understand your application scenarios, help you make the most suitable selection, and even provide suggestions for system integration. We are committed to being your most reliable and efficient part of the supply chain.

Parameters:

Channels	8 Channels
Resolution	16-bit
Update Rate	1 ms / all 8 channels
Input Range	Multiple selectable
• Voltage Range	-10 to +10 V, 0 to +10 V, -5 to +5 V, 0 to +5 V, 1 to +5 V
• Current Range	4 to 20 mA, 0 to 20 mA
Input Impedance	> 10 MΩ (Voltage), 250 Ω (Current)
Isolation Voltage	500 V RMS (Channel-to-Channel), 1500 V RMS (Channel-to-Backplane)
Backplane Bus Current	210 mA (Max)
Power Consumption	5.25 W (Max)
