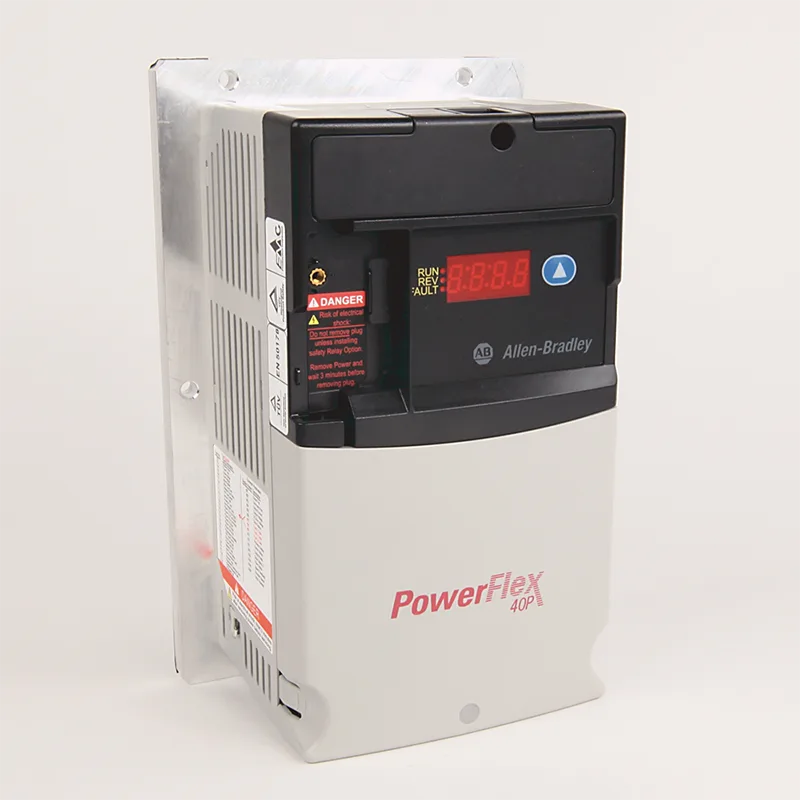

Allen Bradley 22D-B2P3F104

The Allen Bradley 22D-B2P3F104 can provide powerful power output within a very compact body, significantly saving the installation space in the electrical control cabinet. It is particularly suitable for applications with limited space. Quanzhou Xin Yuan Technology is committed to providing you with a stable and reliable supply chain guarantee and comprehensive technical support.

Product Specifications

Rated input voltage 380 - 480V AC, 3-phase

Rated input frequency 50/60 Hz

Rated output voltage 0 - input voltage

Rated output current 10.2 A

Overload capacity Heavy-duty application 110% continuous, 150% 1 minute

Standard application 120% continuous, 150% 1 minute

Output frequency range 0 - 500 Hza

Switching frequency 2 - 16 kHz

What are the advantages of this product?

The Allen Bradley 22D-B2P3F104 does not require an additional braking unit. It offers faster response, a simpler system, and reduces the cost of purchasing additional modules. It significantly reduces the size of the electrical control cabinet, making it particularly suitable for equipment with limited space. With fewer components, the wiring is simpler, and there are fewer potential fault points in the system, resulting in naturally higher reliability.

Functions

Allen Bradley 22D-B2P3F104 precisely controls the speed and output torque of three-phase AC motors. It can switch between speed mode and torque mode to adapt to different applications. Up to 16 preset speeds can be set through digital input or communication to meet the requirements of complex production processes. The acceleration and deceleration times can be independently set, and a S-shaped curve is supported to make the start and stop smoother and reduce the impact on the mechanical structure.

Product Packaging

The packaging of Allen Bradley 22D-B2P3F104 is a typical industrial-grade standard packaging, with the primary goal being protection. It ensures that the precise frequency converter can safely reach the users through sturdy cardboard boxes and effective internal cushioning materials. At the same time, its packaging materials are gradually evolving towards environmentally friendly and recyclable directions.

Why Choose Us?

Our technical team not only has a thorough understanding of every parameter of the Allen Bradley 22D-B2P3F104, but also is familiar with the application pain points of this device in various industries. We can help you avoid common configuration pitfalls and ensure that the inverter performs at its best. We will provide the most accurate selection suggestions based on your actual load characteristics and process requirements.
