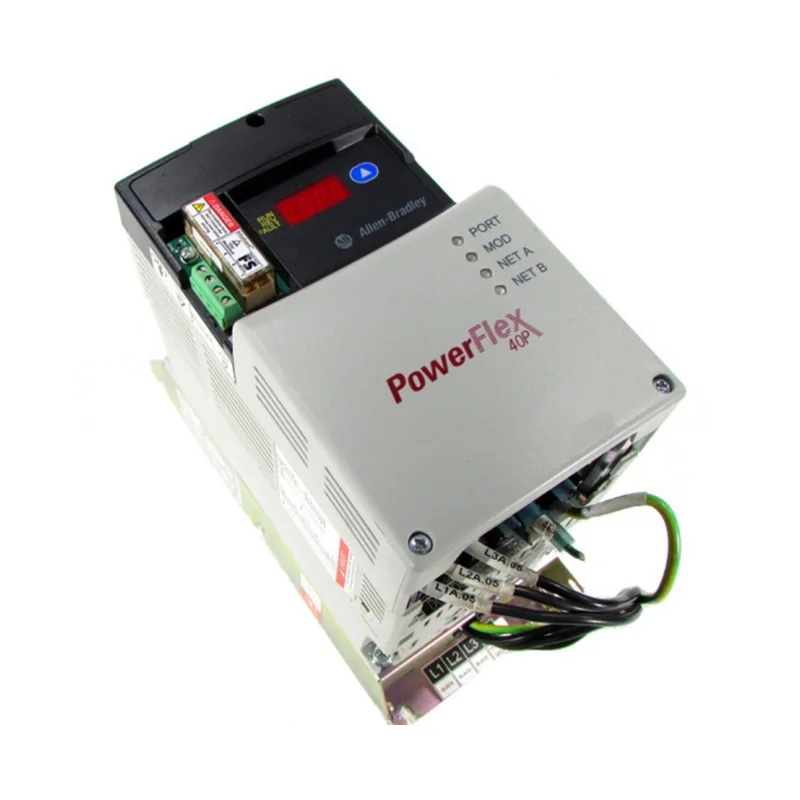

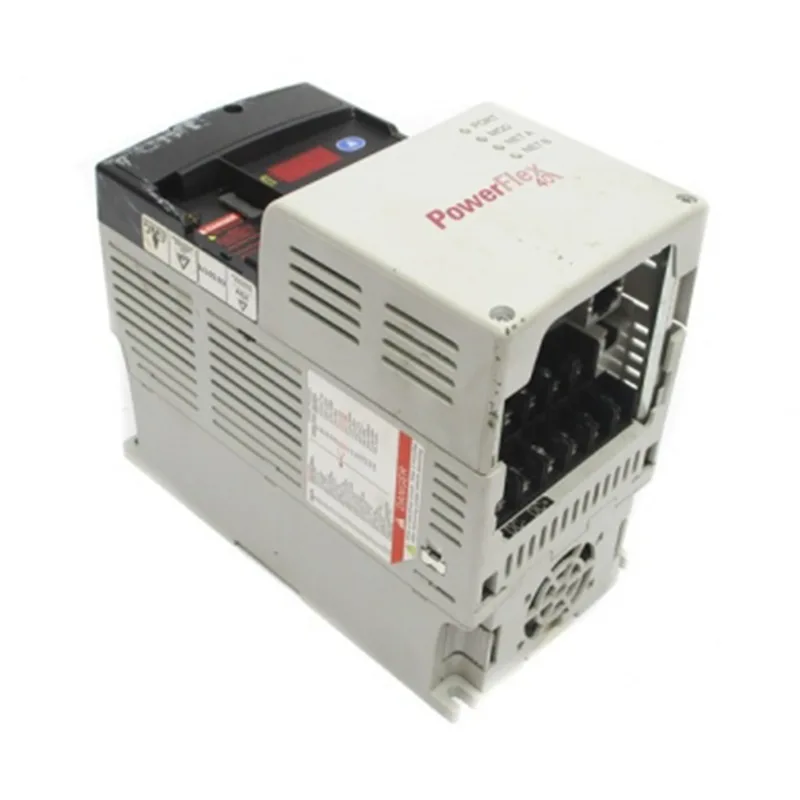

The Allen Bradley 22D-B8P0F104 model inverter has been launched in China. It is a highly praised high-performance AC inverter. Xinyuan Technology, with its abundant inventory and responsible after-sales service, has promoted this sturdy and intelligent drive product to its partners and provided reliable motor control solutions for various industrial applications.
Rated Power: 8.0 HP (6.0 kW)
Input Voltage: 480V AC 3-Phase (380-480V AC, ±10%)
Input Frequency: 48/63 Hz
Output Current: 11.0 A (Ampere)
Overload Capacity: 150% overload, lasts 60 seconds; 200% overload, lasts 3 seconds
The Allen Bradley 22D-B8P0F104 is a frequency converter specifically designed for applications with limited space, high safety requirements, and the need for flexible configuration.
We have a large stock of Allen Bradley 22D B8P0F104. Your large order can be responded to immediately without any waiting time. Our optimized global logistics network can deliver the products to you in the most economical way and at the fastest speed, thereby shortening your project cycle. We use professional anti-static packaging and provide 24-hour full tracking service, integrating "safety" and "transparency" into every step, allowing you to completely eliminate any worries. Ultimately, what we deliver is not only the products, but also the timely start of the project and the continuity of production.
What is the most prominent feature of the Allen Bradley 22D B8P0F104? Under what circumstances should it be chosen?
Its most prominent feature is the IP66/NEMA 4X high protection level and the built-in EtherNet/IP network interface. If your equipment needs to be installed in a humid and dusty environment (such as in the food and beverage industry), and needs to be frequently rinsed with water, or installed in an area with corrosive gases, then the IP66 enclosure can achieve direct bare installation without the need for an additional electrical cabinet. When network control is required: If you are using a Rockwell Automation control system (such as a ControlLogix PLC), the built-in EtherNet/IP port allows you to easily integrate the frequency converter into the entire automation network, achieving efficient data exchange and centralized control.
What are the special requirements for the IP66/NEMA 4X enclosure?
Yes, there are special requirements. The IP66 enclosure is usually installed in a wall-mounted manner. The main part of the frequency converter is installed inside the control cabinet, but its heat dissipation components (heat sinks) need to pass through the installation panel of the control cabinet and extend to the outside of the cabinet. This allows the heat generated by the frequency converter to be directly discharged to the outside environment, rather than remaining in the sealed control cabinet, thus ensuring good heat dissipation and the reliability of the frequency converter. You need to open a precisely sized hole for the control cabinet and use the matching gasket after installation to ensure the seal.
