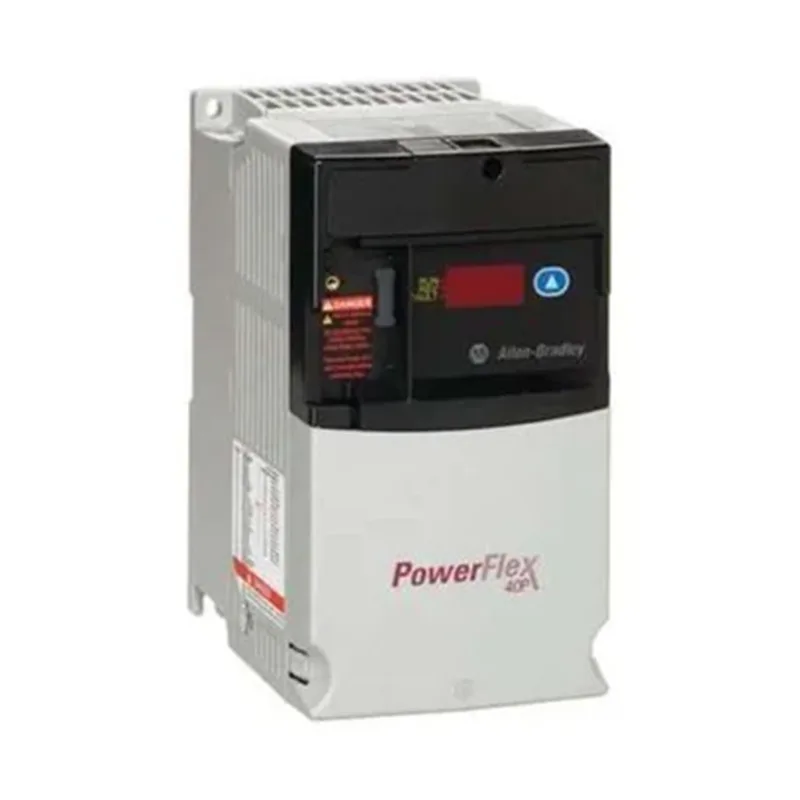

Allen Bradley 22D-D024H204

Quanzhou Xinyuan Technology also pursues a seamless service experience. The Allen Bradley 22D-D024H204 we provide is not only a high-quality genuine product, but also a borderless and highly responsive service system, designed for controlling the speed and torque of small-power three-phase motors. It is widely used in small machinery and equipment due to its compact size, ease of use and high reliability. Make sure that your entire production line can run smoothly from procurement to operation and maintenance without any obstacles.

Product Parameters:

Rated motor power: 11 kW

Rated output current: 24.0 A

Input voltage: Three-phase 380-480V AC

Input frequency: 48-63 Hz

Output voltage: 0-480V AC

Output frequency range: 0-500 Hz

Package type: IP20 / NEMA Type 1

Built-in filter: Class C EMC filter

Default control mode: 0-10V analog input

Communication port: Built-in EtherNet/IP

Safety function: Safe Torque-Off

Product Features:

In the Rockwell Automation architecture, the Allen Bradley 22D-D024H204 is positioned as a highly integrated core drive unit.Its native EtherNet/IP enables frictionless communication with the Logix controller; the built-in filter meets the stringent industrial EMC specifications; and the standard STO achieves the safety level of PLe/SIL 2. Combined with its modular hardware platform and advanced vector control algorithm, this product provides a standard solution that is both flexible, reliable and secure, suitable for demanding intelligent factory applications.

Function:

The Allen Bradley 22D-D024H204 is a fully-featured and highly-intelligent compact inverter. It not only offers powerful motor drive capabilities, but also thanks to its seamless EtherNet/IP network integration capability and built-in intelligent functions, it has become an efficient, reliable and easy-to-use core driving component in modern automation systems.

Core Value:

The core value of Allen Bradley 22D-D024H204 lies in the fact that users choose it not merely for the purpose of driving a motor, but for obtaining a more streamlined, more reliable, and cost-effective system architecture with superior performance, intelligence, and broader adaptability. From design, debugging to maintenance, it offers an extremely efficient full lifecycle experience. Ultimately, all of this translates into the core competitiveness of users: faster delivery, higher quality, and lower operating costs.

Product Structure:

The housing size of Allen Bradley 22D-D024H204 is very small, making it easy to be installed on electrical cabinets or machines with limited space. It is usually made of metal and has excellent heat dissipation and electromagnetic compatibility. It uses air cooling. The housing is covered with heat dissipation fins, and there is a fan inside that extracts the heat from one side and discharges it through the heat dissipation fins. When installing, it is necessary to ensure there is sufficient heat dissipation space in front and behind.
