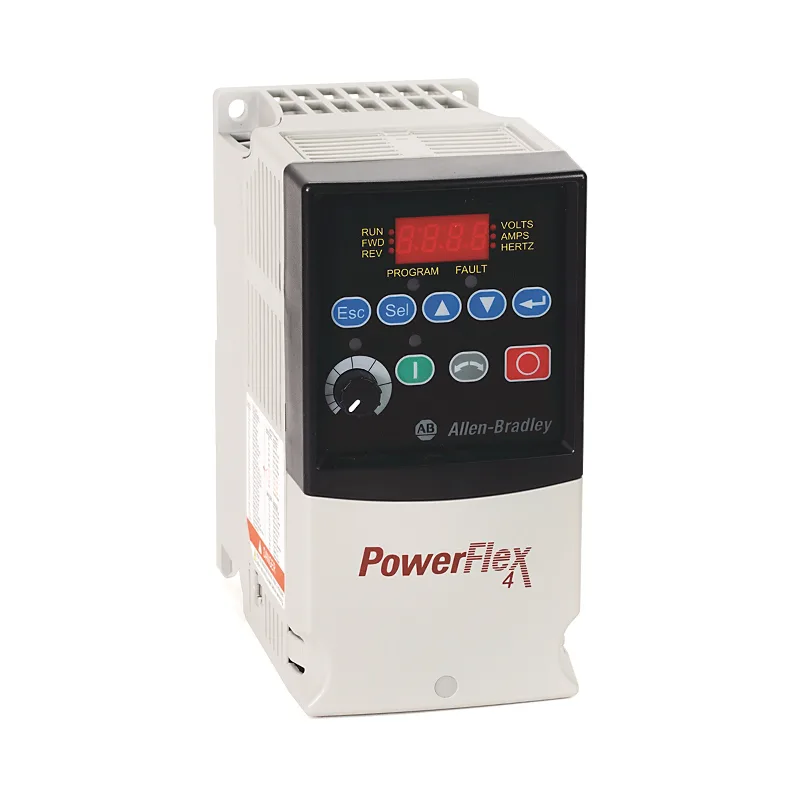

Allen Bradley 22D-D6P0F104

The Allen Bradley 22D-D6P0F104 is a three-phase AC frequency converter. Unlike the model you previously inquired about, this one is the smaller power version within the framework D. It is also renowned for its compact design, powerful control functions, and flexible configuration options, and is suitable for small to medium power applications. We chose Quanzhou Xinyuan Technology because we trust it. Our relentless pursuit of product quality directly translates to the high reliability and long service life of your equipment.

Product Parameters

Input voltage 380 - 480VAC, 3-phase, 50/60 Hz

Input voltage range 324 - 528VAC

Output voltage 0 - input voltage

Rated output current 6.0 A

Switching frequency 2 - 16 kHz

Efficiency Up to 97.5%

Product Structure

The Allen Bradley 22D-D6P0F104 is an integrated compact unit. All key components are encapsulated within a sturdy, non-perforated metal casing. This design enables it to withstand dust, high-pressure water jets, and corrosive environments, thus eliminating the need to install it in an additional electrical cabinet. It can be directly deployed on equipment or in the production site.

Functions

The Allen Bradley 22D-D6P0F104 is not merely a simple motor speed controller; it is an intelligent drive device that integrates high-performance control, intelligent applications, network communication, advanced safety, and comprehensive protection. These features enhance production efficiency. Through high-performance control and automation integration, it ensures equipment and personnel safety.

Product Uses

The application of the Allen Bradley 22D-D6P0F104 inverter is determined by its core features: a power rating of 2.2kW and a high protection level of IP66/NEMA 4X. This indicates that it is highly suitable for applications with medium to small power and in harsh working environments.

Product Characteristics

The most distinctive feature of the Allen Bradley 22D-D6P0F104 is that it has an IP66 / NEMA 4X rated sealed enclosure and does not have a cooling fan. It can prevent dust and moisture, resist high-pressure water gun rinsing and corrosion, and does not rely on air flow for heat dissipation. Instead, it dissipates heat through the surface of the sturdy metal enclosure.
