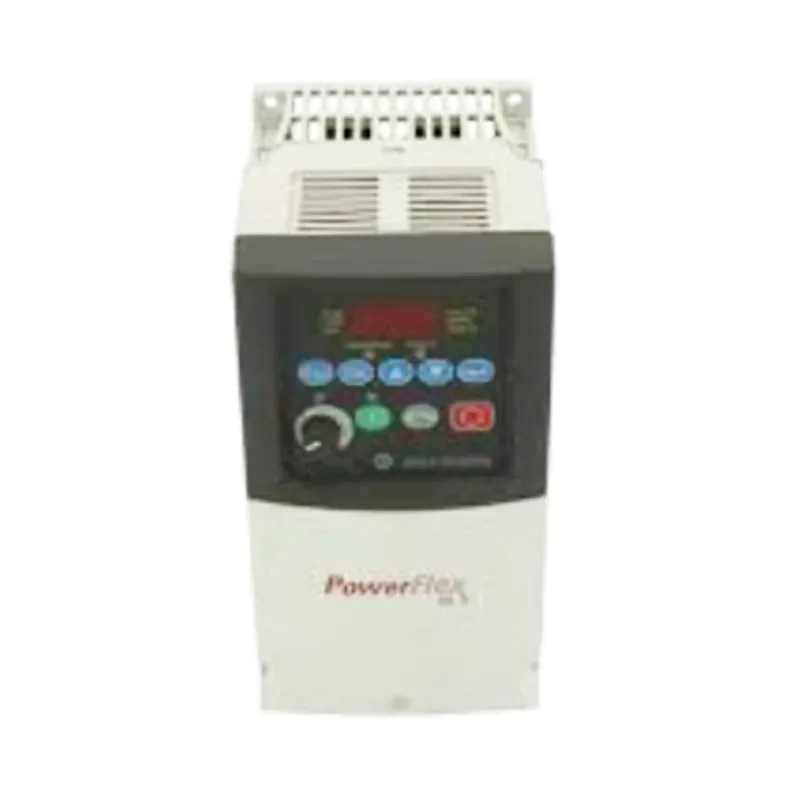

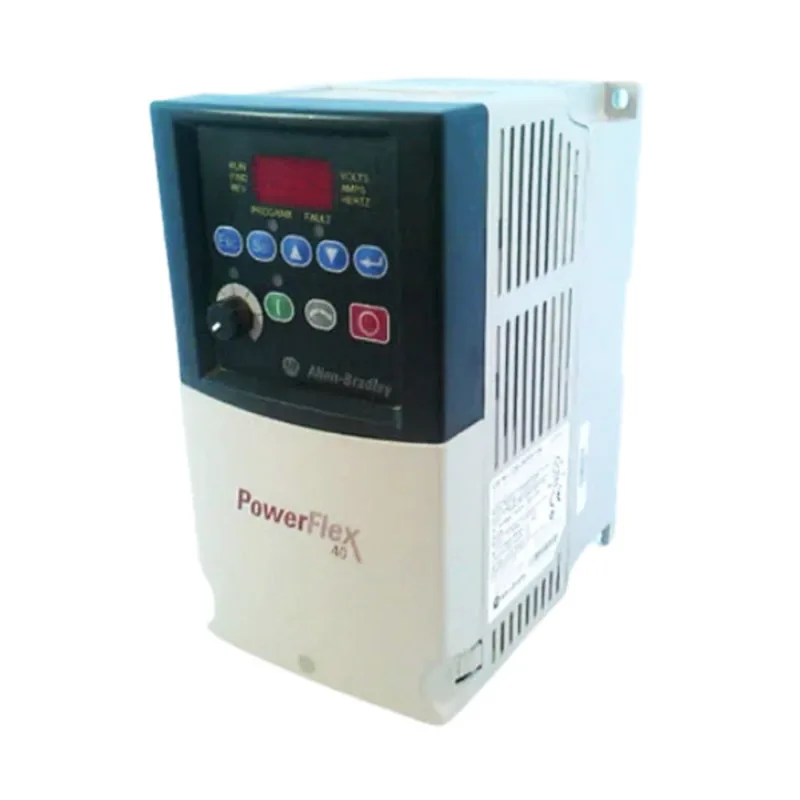

Allen Bradley 22B-D010N204-DE

Quanzhou Xinyuan Technology is one of the high-tech enterprises in China. It is an outstanding partner of Allen-Bradley and also an exporter and supplier of Allen Bradley 22B-D010N204-DE. This "DE" model is the standard "top student", strictly adhering to the norms of the European market in all details. Xinyuan Technology is dedicated to delivering such a high-quality and compliant industrial product to your project site in its original form.

Send Inquiry

Product Description

Allen Bradley 22B-D010N204-DE is a PowerFlex 40 frequency converter. If your project is either directly exported to Germany or Europe, or you have high requirements for the compliance and quality of the product like German standards. If this is exactly your situation, then you've come to the right place today.

The core features of Allen Bradley 22B-D010N204-DE, apart from having the consistent stability and high quality of the PowerFlex 40 series, the most prominent highlight is that it is a German/EU compatible version. This means that from design to factory delivery, it strictly complies with the requirements of European mandatory regulations such as CE certification, and has reached very high standards in terms of safety, electromagnetic compatibility (EMC), and other aspects.

Performance:

Starting a 7.5kW motor, AB 22B-D010N204-DE can provide a smooth acceleration curve without causing any impact on the power grid or mechanical equipment. During operation, it features high speed control accuracy and fast response. Most importantly, since it is the "-DE" version, you needn't worry at all that it will affect other precision equipment nearby due to electromagnetic interference issues or fail the local safety inspection.

Basic Parameters:

Basic Model Info	Product Series	PowerFlex 40
	Catalog Number	22B-D010N204-DE
	Product Description	AC Drive, German Version
Electrical Specs	Rated Input Voltage	380-480V 3-Phase
	Input Voltage Range	380-480V ± 10%
	Input Frequency	48/63 Hz
	Rated Output Voltage	0 to Input Voltage
	Rated Output Current	18.0 A (Amps)
	Overload Capacity	150% for 1 minute, 200% for 3 seconds
	Efficiency	> 97%
Motor Specs	Rated Power (HP)	10 HP
	Rated Power	7.5 kW
	Recommended Motor Power	7.5 kW (10 HP)
	Control Mode	V/F Control (Volts per Hertz)
Control & Comm	Default HIM	German Language HIM
	Digital Inputs (DI)	6 (Programmable)
	Digital Outputs (DO)	2 (Form C Relays, Programmable)
	Analog Inputs (AI)	2 (0-10V or 0/4-20mA, Programmable)
	Analog Output (AO)	1 (0-10V or 0/4-20mA, Programmable)
	Communication Port	Built-in RS-485 (Supports DPI)
	Optional Comm Modules	DeviceNet, PROFIBUS DP, EtherNet/IP, etc.
Physical & Enviro	Frame Size	Frame D
	Dimensions (HxWxD)	248 mm x 140 mm x 171 mm (9.76 in x 5.51 in x 6.73 in)
	Weight	Approx. 4.5 kg (9.9 lbs)
	Protection Rating	IP20 (NEMA/UL Type 1 Open-Type)
	Operating Temp.	0-50 °C (32-122 °F)
	Storage Temp.	-40-85 °C (-40-185 °F)
	Max Altitude	1000 meters (3280 ft), derating required above
Certifications	CE Mark	Yes
	cULus Listed	Yes
	RoHS Compliant	Yes
