If you are looking for a low-cost but high-performance frequency converter, the Allen Bradley 22D-E1P7F104 model would be an excellent choice. Compared to other high-end frequency converters, the parameters of this model have been meticulously optimized, retaining only the most basic and commonly used settings. During use, you don't need to carefully study the thick manual; you can simply complete the basic configuration quickly. If you have any inquiries about this product, please contact us at Xin Yuan Technology.

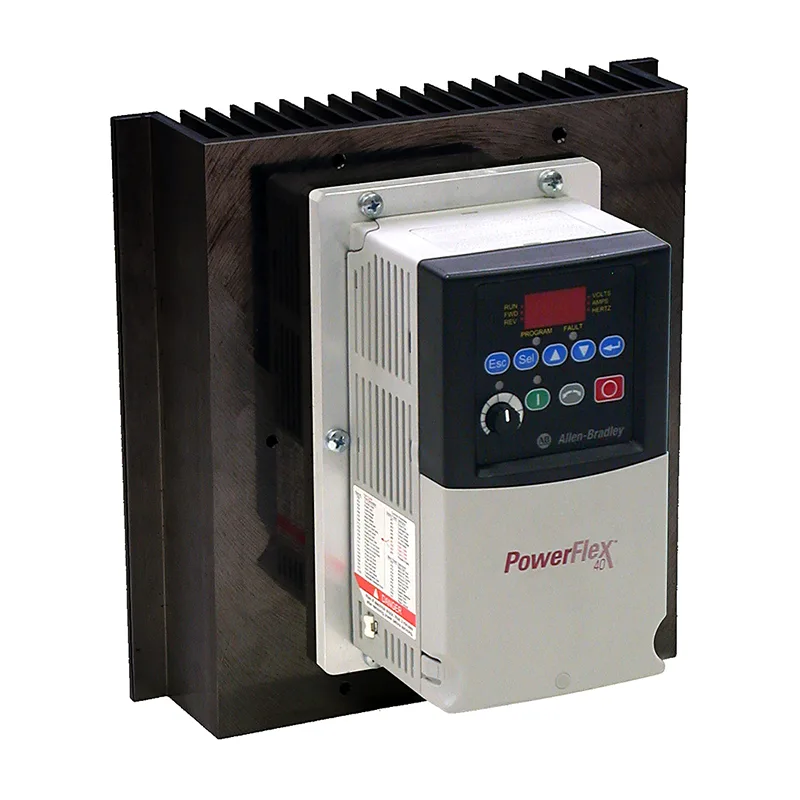

product name Allen Bradley 22D-E1P7F104
Rated Power: 0.75 kW
Input Voltage: Three-phase 380-480V AC
Voltage Range: 380-480V AC ±10%
Input Frequency: 48-63 Hz
Output Voltage: Three-phase 0-480V AC
Rated Output Current: 2.2 A
The application fields of Allen Bradley 22D-E1P7F104 Driving the main conveyor belts or branch lines on assembly lines for automobiles, electronics, and household appliances. It is used for material transportation in logistics warehouses, airport baggage sorting systems, mines, and ports for bulk material transportation. It is also used for transporting larger loads such as pallets and heavy boxes. It drives the vertical transportation of materials between floors or at different heights.
Xinyuan Technology, as a supplier from China, for us, the beginning of the cooperation is the true starting point of our service. Our goal is not to complete the transaction, but to become the reliable support you can always rely on. Our company has sufficient inventory. No matter how many quantities you need, we can meet your requirements.
How to achieve rapid stop?
For applications that require rapid deceleration, the Allen Bradley 22D-E1P7F104 itself does not have braking functionality. Therefore, you must connect an external dynamic braking resistor.
What should be done when the motor is not rotating?
In the event that the motor does not rotate, one should first check the start signal, frequency setting, motor wiring, and the configuration of P036 start mode to ensure they are all correct.
Do I need an external braking resistor?
Not necessarily. It depends on your application.If your application involves acceleration or constant-speed operation (such as fans, pumps), usually no external braking resistor is required.If your application requires frequent and rapid deceleration or stopping such as high-inertia conveyors, elevators, then an external dynamic braking resistor must be connected; otherwise, the frequency converter will alarm and stop due to overvoltage. Note: This model does not include an integrated braking unit.
