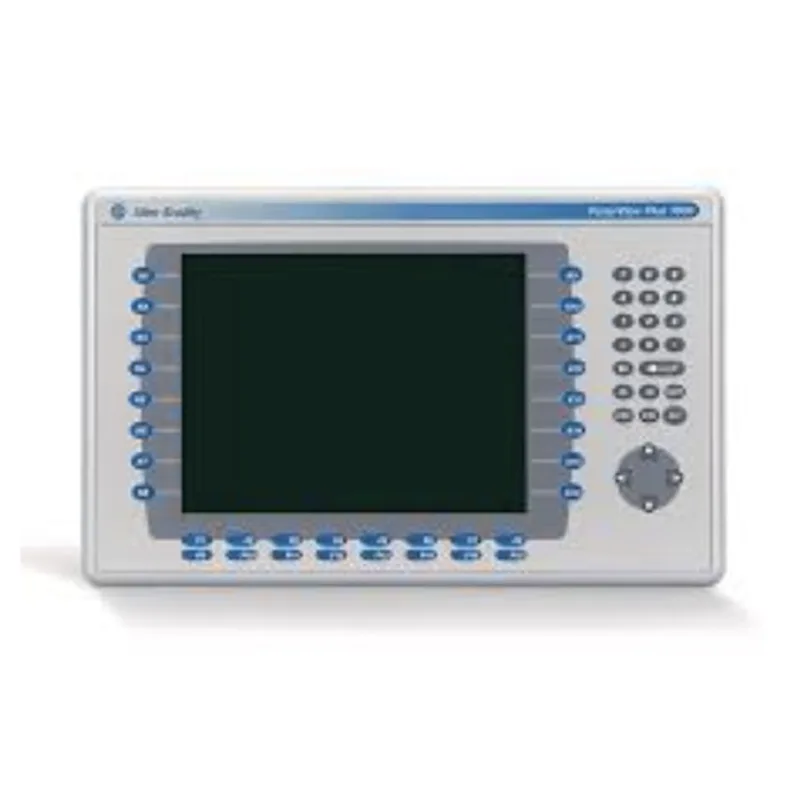

The Allen Bradley 2711P-B10C4A8 features a 10-inch color LCD display with clear resolution and 80% light transmittance. It supports multi-touch operation and a USB port for direct connection to a PLC for real-time access to the production process. Its response speed is as fast as 0.1 milliseconds, and its click lifespan is up to 1 million times. Xinyuan Technology, an authorized Rockwell Automation distributor and supplier, has been focusing on industrial automation for 15 years, serving over 500 large and medium-sized enterprises and providing customers with affordable, easy-to-use products.
The Allen Bradley 2711P-B10C4A8 features a panel-mount design and durable construction. Its front panel features a high-quality touchscreen framed by industrial-grade materials that are resistant to common chemical corrosion. To meet the unique requirements of industrial environments, this touchscreen's Ethernet port supports Device Level Ring (DLR). If a node in the network fails, the system automatically reconfigures the network path to ensure uninterrupted communication, significantly improving system reliability. This product offers a wide range of connectivity options. It features an RJ45 Ethernet port with auto-sensing 10/100MB network speed and Auto-MDI/MDI-X functionality. This allows direct connection to the factory LAN for remote data collection and monitoring of equipment.
|
Screen Size |
10.4-inch wide screen display |
|
Display Type |
TFT LCD, 18-bit color |
|
Resolution |
1024 x 768 pixels (SVGA) |
|
Memory Configuration |
512MB RAM + 512MB non-volatile memory (approx. 80MB user-available space) |
|
Operating System |
Windows CE 6.0 |
|
Communication Interfaces |
Ethernet (RJ45), USB |
|
Network Protocols |
Supports IEEE 1588 Precision Time Protocol |
|
Operating Temperature |
0°C to 60°C (typical industrial environment range) |
|
Protection Rating |
IP65 (front panel), dust and water-resistant |
AllenBradley 2711P-B10C4A8 is used at three levels: communication, hardware and application software. Xinyuan has summarized some solutions to this. If the data is displayed as a question mark, it might be caused by incorrect IP address configuration, interruption of the physical network connection, or mismatch of the drive path. We can solve this problem by checking the network Settings and verifying the PLC label.
When the touch function malfunctions, the screen goes black or the device fails to power on, you can calibrate it by touch, check the 24V power supply or determine whether the backlight/motherboard is damaged.
However, when the device experiences a lag during startup or abnormal alarms, it is often due to incompatibility between the firmware and the application version, the internal clock battery running out, or damage to the program itself. Generally, it is necessary to reload compatible applications, update the firmware, or replace the battery to solve the problem.
In conclusion, when problems arise, you can consult us in a timely manner.
