The Siemens 6ES7223-1BF22-0XA8 is a digital input/output hybrid module for the Siemens S7-1200 series PLCs. It integrates digital signal input and output functions in a single module, receiving switch and sensor signals and controlling devices such as indicator lights and solenoid valves. Its compact design effectively saves space and expansion costs. If you're looking to build a compact industrial automation system, the Siemens 6ES7223-1BF22-0XA8 is your first choice.

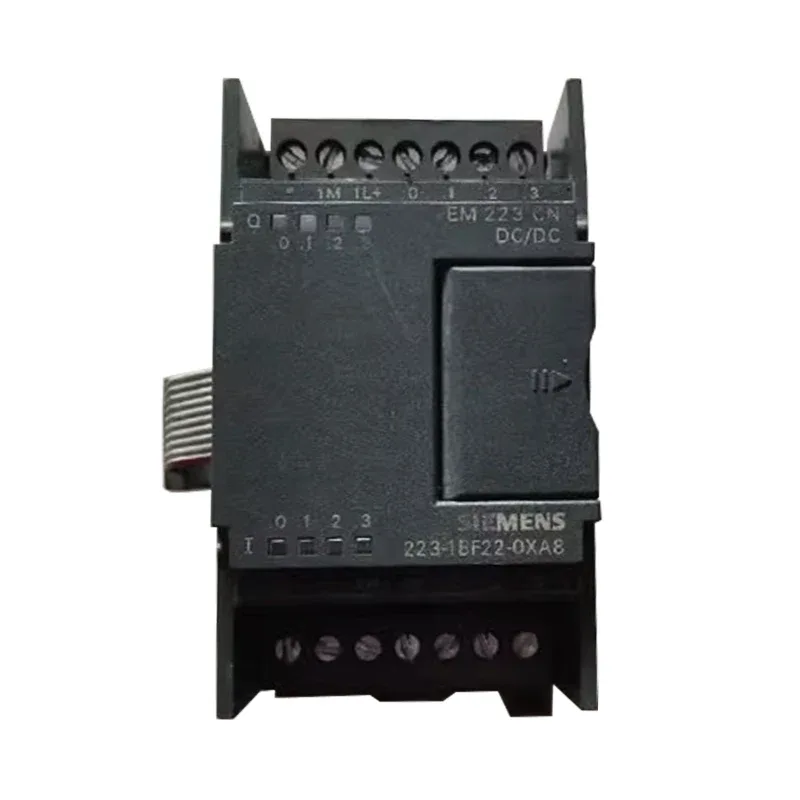

The main body of the module contains status indicators, input and output circuitry, and a CPU interface. The front of the module features connectors for external input and output cables. These connectors are coded to prevent incorrect insertion. The front of the module features an LED indicator for each input and output channel. When a signal is present, the indicator lights up, indicating the status. There is also a bus for power supply and mounting rails.
|
Module Type |
Digital Input/Output Module |
|
Number of Inputs |
8 |
|
Number of Outputs |
8 |
|
Input Type |
24V DC |
|
Output Type |
Transistor (Source-type) |
|
Rated Input Voltage |
24V DC |
|
Rated Load Voltage |
24V DC |
|
Input Delay |
Configurable (0.1 / 0.5 / 3.2 / 15 ms) |
|
Rated Output Current |
0.5A |
|
Max Output Current |
0.5A (per channel) |
|
Electrical Isolation |
Channel-to-channel, bus-to-channel isolation |
|
Diagnostic Functions |
Supported |
|
Front Connector |
Pluggable, 40-pin |
|
Dimensions (W x H x D) |
45 mm x 100 mm x 75 mm |
|
Power Consumption |
Typical 5 W |
Choosing us means you'll receive not only a genuine, high-performance Siemens module, but also comprehensive support from our team of experts in model selection, technical support, rapid response, and reliable service. We are committed to providing you with the highest-quality products and services to help your automation projects run efficiently and stably.
