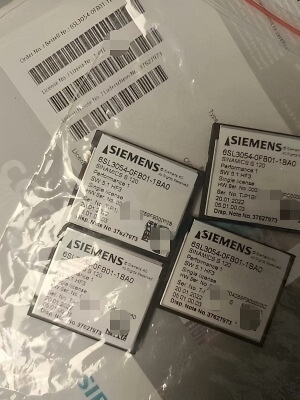

Siemens 6SL3054-0FB01-1BA0

When the old plate of the rotary cutting machine gets stuck by the cutter, it often causes the output pipe to burst. We need to contact Quanzhou Xin Yuan Technology to check the in stock items and replace it with Siemens 6SL3054-0FB01-1BA0. The safe torque hard cutting response time is reduced to 5 milliseconds. The old part continues to flow for 50 milliseconds before immediately stopping and cutting off without breaking the blade.

Application fields

The Siemens 6SL3054-0FB01-1BA0 is not a universal accessory but a dedicated safety base for high-risk power chains. In the main spindle operation of the machine tool, if the operator mistakenly opens the protective door, it is very likely to cause entanglement and injury. The old solution relied on an external relay to cut off the main circuit, and the contact points often got stuck; in the high-speed dehydration section of the centrifuge, if the rotational speed exceeds the critical point and cannot be instantly locked, the drum disintegrates and flies out frequently; if the vertical lifting axis of the rack stacker becomes out of control and starts to slide, the entire machine will be completely damaged. This module directly anchors to the base of the SINAMICS inverter and provides a bottom-level block from signal acquisition to power level cutoff for these extreme scenarios involving gravity loads, high-speed inertia, and personnel crossover. It completely replaces the complicated wiring of external safety relays and eliminates accidents at the millisecond level.

Core selling point

The traditional safety circuit from the emergency stop button press to the motor stop requires PLC scanning, relay action, and contactor disconnection. The measured delay often exceeds 60ms, which is enough time for the spindle to get stuck in the workpiece. The Siemens 6SL3054-0FB01-1BA0 module is equipped with an independent Safety logic and bypasses the main control cycle directly. When the emergency stop signal is triggered, the module locks the pulse output of the inverter IGBT within 5ms, achieving STO (Safe Torque Release), and the remaining power of the motor is instantly reset to zero. Compared to the old board which often reports F01650 channel faults, this module's dual-channel decoder has physical isolation and short-circuit monitoring. If the wiring is disconnected or the cable is damaged, it will immediately report a stop. It never operates in a faulty state. Additionally, the SS1 safety shutdown function allows high-speed and large inertia loads to decelerate according to the preset curve, avoiding mechanical shock and belt breakage during emergency stop.

Adaptability performance

The most common problem when replacing is topological conflict. This board is specially designed for the CU240B/E control unit. The physical interface uses a foolproof snap-lock mechanism, and pressing it into the bottom slot locks it immediately. There is no need to pull the 24V power supply externally. It can directly draw power from the back panel. In terms of electrical compatibility, it is connected through PROFINET networking, exchanging ProfiSafe messages with S7-1500F seamlessly, and no longer occupying regular I/O resources. The practical pain point lies in upgrading old equipment Previously, replacing safety components required rewriting PLC logic, but this module automatically recognizes in the STARTER debugging tree. Just activate the safety firmware, configure the F-DI source type/leak type dip switch, and one-click compile and download to complete the protocol binding. Moreover, the terminal block supports 0.5-1.5mm² cold-press pins, and there will be no pin withdrawal or false connection under vibration conditions, perfectly compatible with the old cabinet wiring.

Customer trust

Parameter mislabeling is common in the industrial control circle. The on-site failure rate of the Siemens 6SL3054-0FB01-1BA0 module is extremely low. A rubber compounding line in Southeast Asia once suffered frequent false alarms due to harmonic interference from the old safety board, resulting in a loss of over 20,000 yuan per incident. After replacement, its built-in filtering mechanism and signal verification logic enabled continuous operation for 8000 hours with zero false alarms. In an European machine factory, the emergency stop response was measured, and the oscilloscope captured the wave display showing that from the trigger to the IGBT cutoff was only 4.2ms, far exceeding the CE certification requirements. The most direct customer feedback was No need to fiddle around - the old solution required re-verifying the safety circuit verification for half a day, while this module can be plugged and unplugged with cloned parameters in 15 minutes for resumption of production. An old electrician said, If the safety parameters are set wrongly, it will directly lock and refuse to start. The foolproof measures are in place, and it provides a solid foundation.
