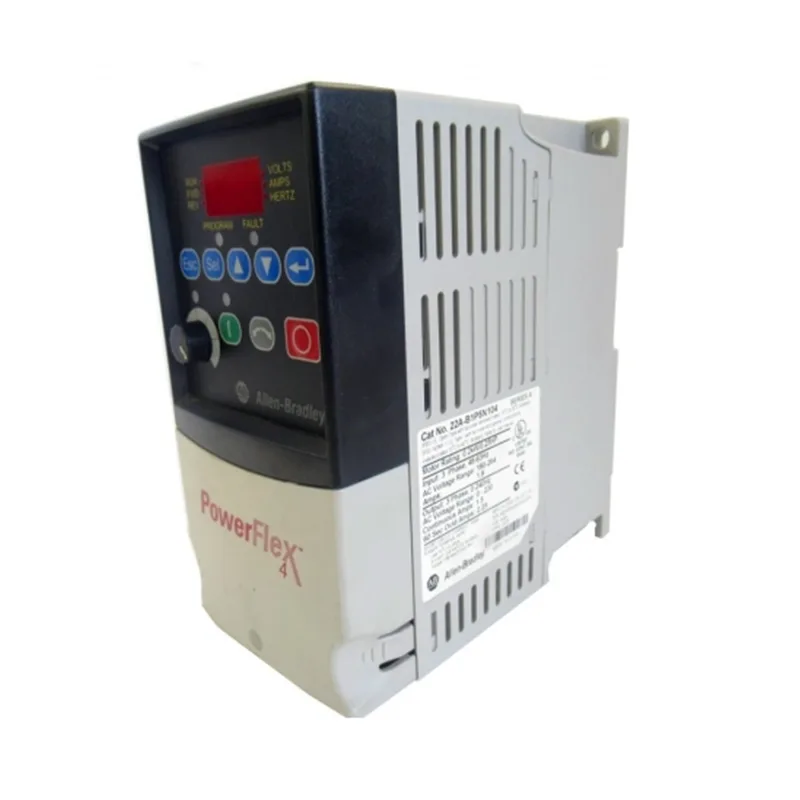

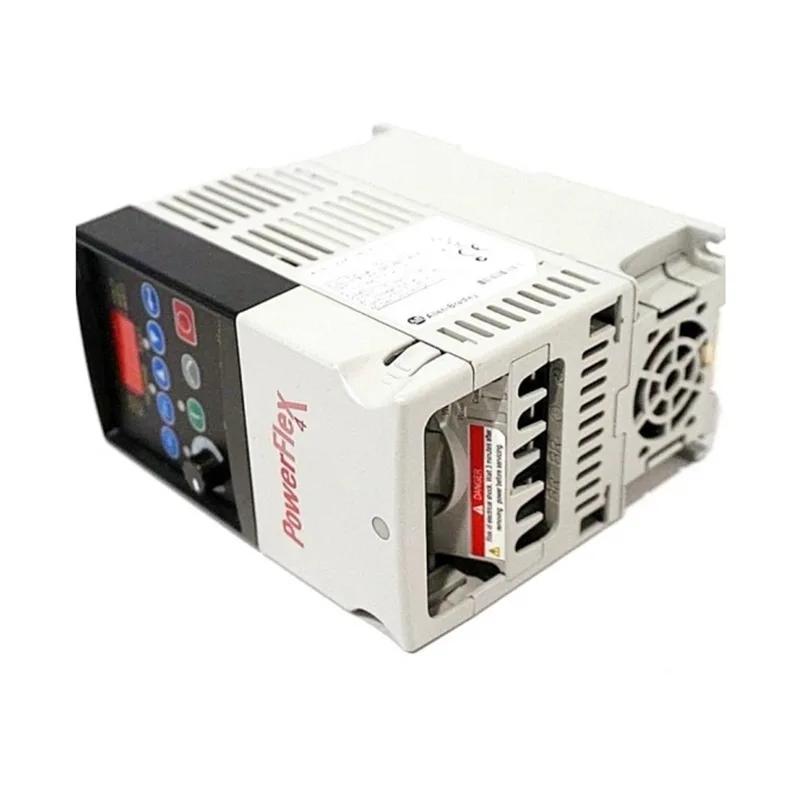

The Allen Bradley 22A-A2P3F104 inverter is compact, easy to use, offers outstanding performance, reliable operation, and mainly cheap! It can solve small transmission problems. Its compact size helps save space and makes installation more convenient. Our design is aimed at meeting the demands of global equipment manufacturers and end users for flexibility, space efficiency and ease of operation. The AB 22A-A2P3F104 offers a variety of power supply, control and user interface options, thus being able to adapt to different space and reliability requirements. Quanzhou Xinyuan Technology is a professional supplier of industrial automation products. We supply this high-quality product to overseas markets to help you precisely control the motor speed.
|
Model |
22A-A2P3F104 |
|
Rated Power |
0.37 kW / 0.5 HP |
|
Input Voltage |
240V AC, 1-Phase, 2.3A |
|
Output Current |
2.3 A |
|
Enclosure Type |
Type A (Compact Flange Mount) |
|
Protection Rating |
IP20 (NEMA 1), suitable for standard industrial environments |
|
Human-Machine Interface |
LED Display, Fixed Digital Keypad |
|
Control Method |
V/F Control, Sensorless Vector Control |
|
Switching Frequency |
Adjustable, up to 16 kHz |
|
Digital Inputs |
6 programmable digital inputs |
|
Digital Outputs |
2 programmable relay outputs |
|
Built-in Communication |
RS-485 |
|
Certification Standards |
cULus, CE, RCM |
|
Rated Power |
0.37 kW / 0.5 HP |
|
Input Voltage |
240V AC, 1-Phase, 2.3A |
|
Output Current |
2.3 A |
|
Enclosure Type |
Type A (Compact Flange Mount) |
Allen Bradley 22A-A2P3F104 is a compact frequency converter designed for industrial and commercial power grids, capable of reasonably controlling fans, water pumps and air handling units. With its built-in EtherNet/IP port and sensorless vector control technology, it is one of the important components in the mining and manufacturing industries.
