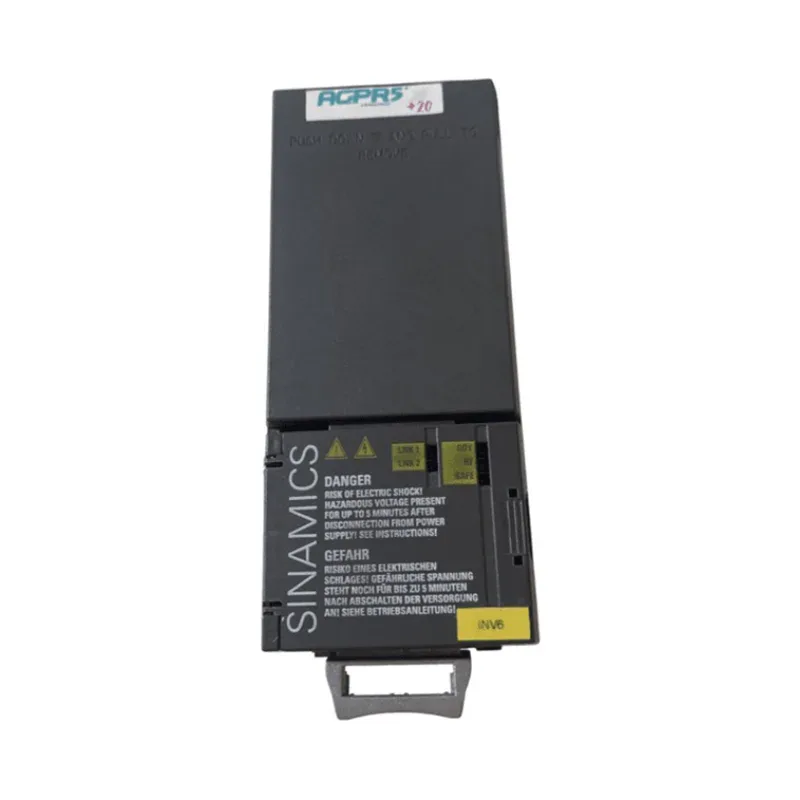

Despite its meager 0.75kW nominal power, the Siemens 6SL3210-1KE12-3UF2 boasts a robust 150% overload capability for three seconds. It can handle voltages from 380V to 480V and frequencies from 47Hz to 63Hz, effectively giving the motor a turbocharger. Best of all, it features a built-in safe torque cutoff function. If the equipment jams, it shuts off power in 0.1 seconds, faster than an airbag. This makes it incredibly reliable for food factories and automotive assembly lines.
|
Rated Power |
0.75 kW |
|
Overload Capacity |
150% overload for 3 seconds |
|
Supply Voltage |
380–480 V AC (±10% / -20%), 3-phase AC |
|
Frequency Range |
47–63 Hz |
|
I/O Interface |
6 DI, 2 DO, 1 AI, 1 AO |
|
Communication Protocol |
PROFINET-PN |
|
Protection Rating |
IP20 / UL Open Type |
|
Dimensions |
173 mm × 73 mm × 178 mm |
|
Net Weight |
1.2 kg |
|
Operating Temperature |
-10°C to +40°C |
The Siemens 6SL3210-1KE12-3UF2 is designed like a compressed cookie, half the size of a shoebox, yet it accommodates six digital inputs, two digital outputs, and even analog interfaces without the need for external modules. Its cooling system is even more advanced, relying entirely on the heat sink itself, eliminating the need for a fan. It can operate for a decade in dusty textile and chemical mills without clogging.
