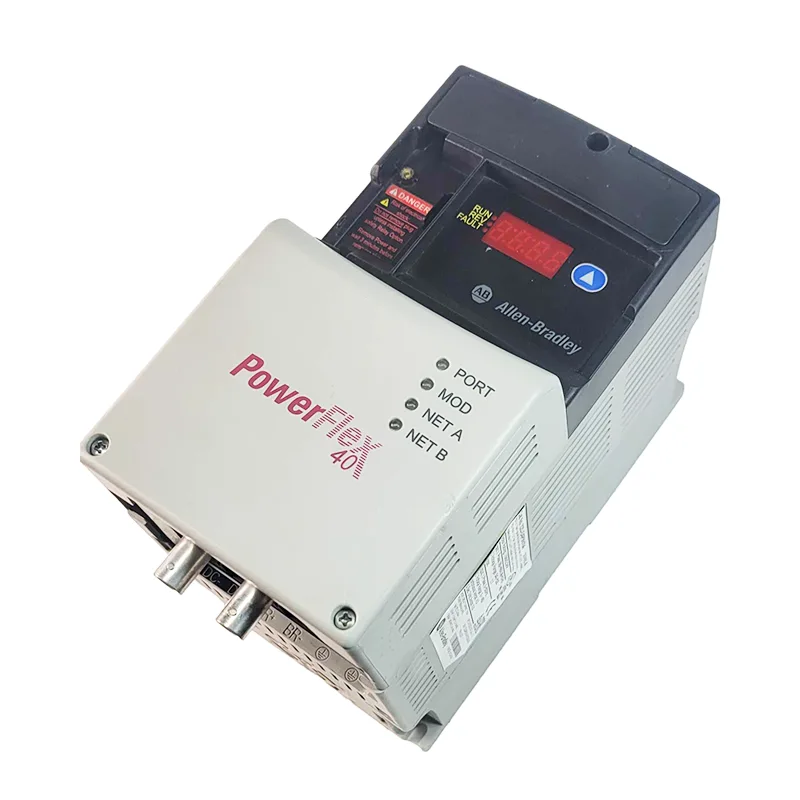

Allen Bradley 22D-B8P0H204

The Allen Bradley 22D-B8P0H204 is a powerful, highly integrated and user-friendly micro inverter. The most remarkable feature is its built-in EtherNet/IP communication capability, making it an ideal choice for building modern and networked intelligent factories, especially for those users who are already using Rockwell Automation control systems. As a reliable supply partner, Quanzhou Xinyuan Technology adheres to the commitment of providing genuine products, and the quality of all products is reassuring and allows for peace of mind when using them. On this basis, we have established an efficient global support network to provide each customer with prompt responses and professional services beyond geographical limitations, maximizing the value of your investment.

Product Parameters:

Rated Power 0.8 HP

Rated Power 0.55 kW

Input Voltage Type 3-phase

Input Voltage Range 380 - 480 V AC

Output Voltage Range 0 - Input Voltage

Built-in Options Safe Torque-Off

Communication Interface Built-in EtherNet/IP

Control Panel Standard Panel

Application Scenarios:

The Allen Bradley 22D-B8P0H204 is not merely a "motor switch"; it is an intelligent execution node. Its most suitable application scenarios are those modern industrial equipment with low power requirements but high demands for automation integration, remote monitoring, precise control, and system coordination. It enables an ordinary small motor to seamlessly integrate into the brain PLC and neural network Industrial Ethernet of the entire factory.

Product Structure:

The metal casing with good heat dissipation, model Allen Bradley 22D-B8P0H204, has an IP20 / NEMA Type 1 open structure, meaning it must be installed in a control cabinet.

It includes a rectifier bridge converting alternating current to direct current a DC bus energy storage and filtering and an inverter bridge reconverting direct current back to variable-frequency alternating currentThe "brain" of the frequency converter. It contains a microprocessor , responsible for executing control algorithms, processing user instructions, monitoring faults, etc.

Built-in Class C filter: The 04 in H204 indicates that this filter is built-in and is used to reduce the electromagnetic interference of the frequency converter to the power grid, which is an integrated hardware component within the unit.An internal intelligent fan that automatically adjusts speed according to temperature to cool the core components and ensure reliable operation.

Product Packaging:

Before packaging, each A B 22D-B8P0H204 inverter will undergo final quality inspection to ensure that the appearance is free of scratches and damages, and all interfaces and terminals are intact. The product is cleaned with a lint-free cloth or compressed air to remove dust and possible debris. It is then placed in an anti-static shielding bag. This is crucial for protecting the sensitive electronic components inside the product from damage caused by static discharge, especially when placing the anti-static bag containing the inverter in a dry environment and wrapping it with an environmentally friendly buffer material.

Product Flowchart:

Demand insight → Customized solution → Quotation and signing → Order processing → Precision manufacturing → Quality inspection → Logistics distribution → Customer acceptance → Installation guidance → System debugging → Continuous support → Maintenance service
